Automatic winding machine PET plastic steel strip production equipment PET strip 20-500KG/roll
FEATURE DESCRIPTION OF PET PLASTIC STRAP MAKING MACHINE

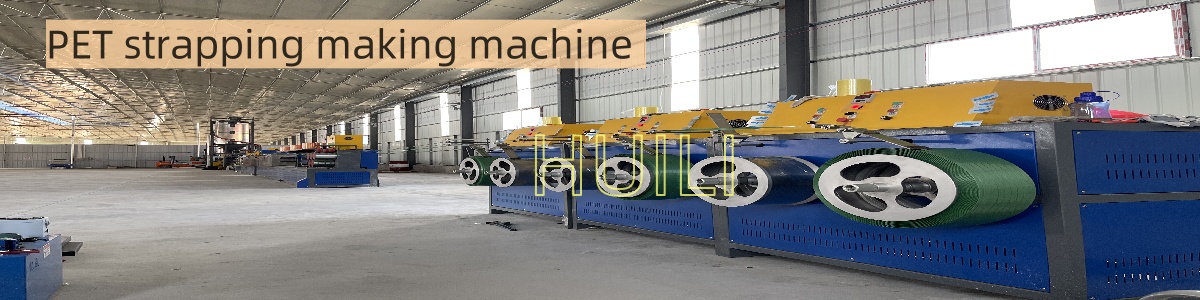

PET plastic strap making machine
PET strapping belt production line is a special equipment for producing polyethylene terephthalate (PET) plastic strapping tape, which is widely used in logistics, packaging, building materials, papermaking and other industries.
FEATURES
Fully automatic production line-----fully automated from raw materials to winding, automatic winding machine, no manual operation required.
Semi-automatic production line----- PLC control system, winding part requires manual operation, suitable for small and medium-sized enterprises.
Dedicated production line------ customized dedicated PET strapping belt production line according to the requirements of PET strapping band.

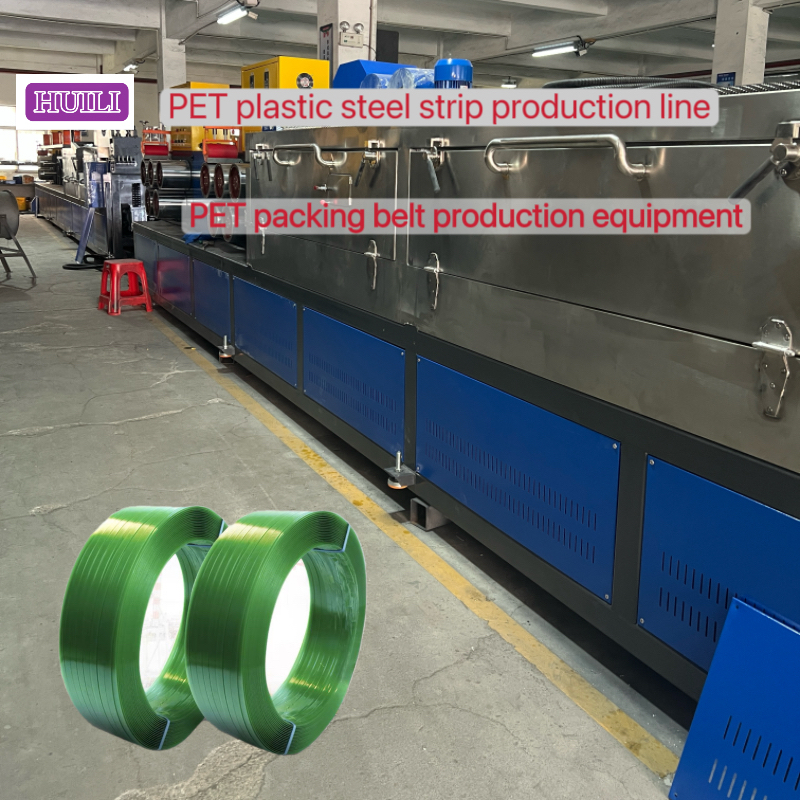

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials |
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 |
| Width (mm) | 0.4-1.2 |
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder |
| Winding machine | Automatic winding/ Semi-automatic winding |
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |

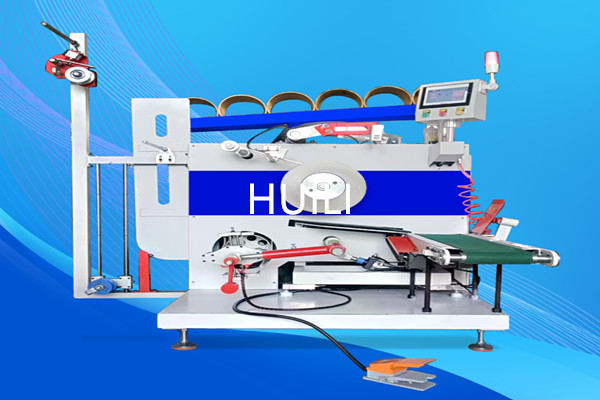

Regarding the winding machine:
The PET plastic steel strip production line winding machine can be equipped with either an automatic winding machine or a semi-automatic winding machine.
After-sales service
PET plastic strap making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic strap making machine .
2. Analysis of finished product manufacturing costs of PET plastic strap making machine .
3. Analysis of raw materials used in PET plastic strap making machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic strap making machine .
2. Installation, commissioning and training of PET plastic strap making machine .
3. Maintenance service of PET plastic strap making machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic strap making machine ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic strap making machine ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic strap making machine?
A: 9-32mm
Q: Can the PET plastic strap making machine be customized?
A: Customization supported
Q: Where does the PET plastic strap making machine come from?
A: China.
Q: What are the certifications for the PET plastic strap making machine ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic strap making machine ?
A: 1 set
Q: What is the weight of the PET plastic strap making machine ?
20T, 40GP container * 3PCS
|
|
